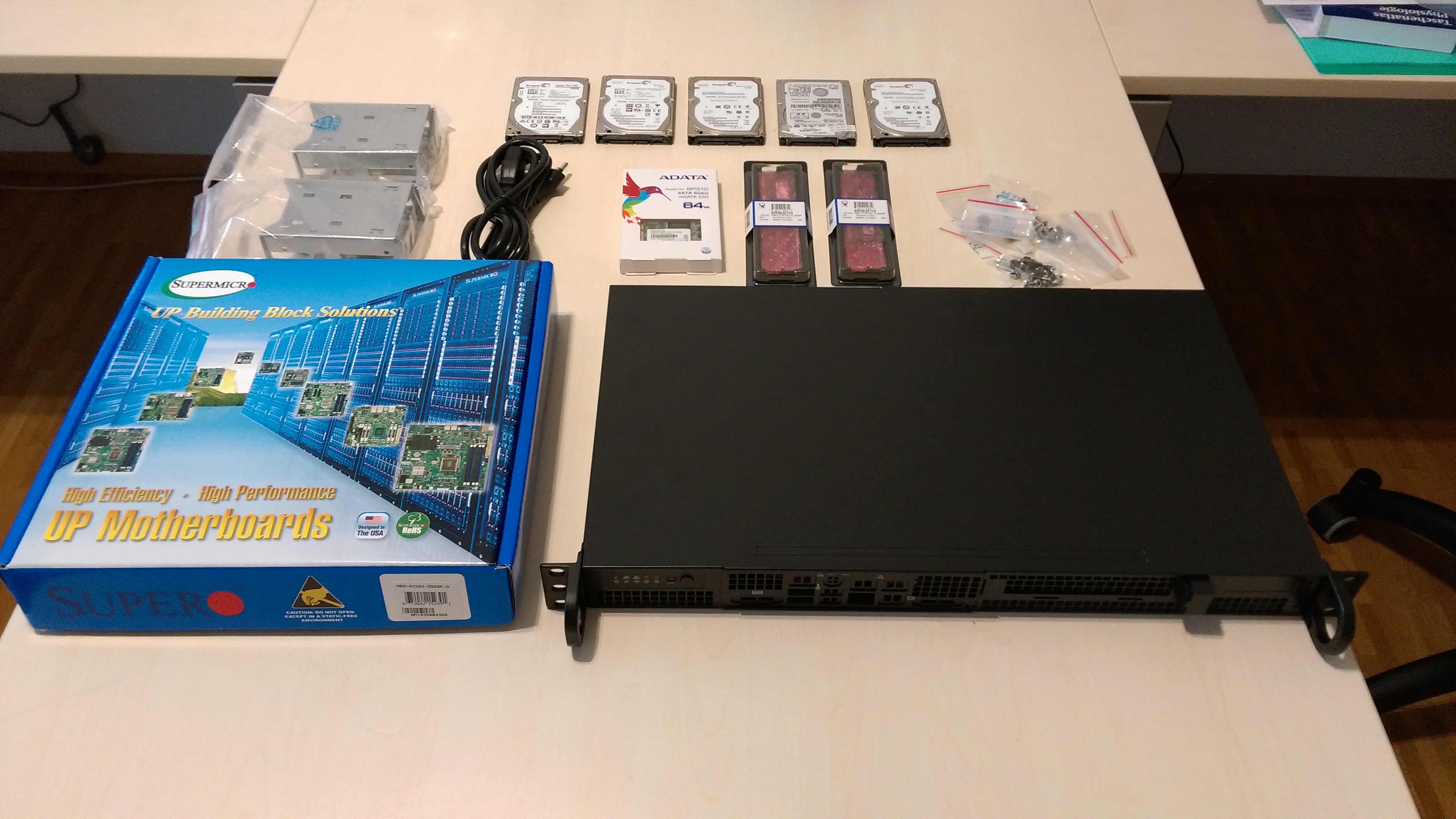

Hardware

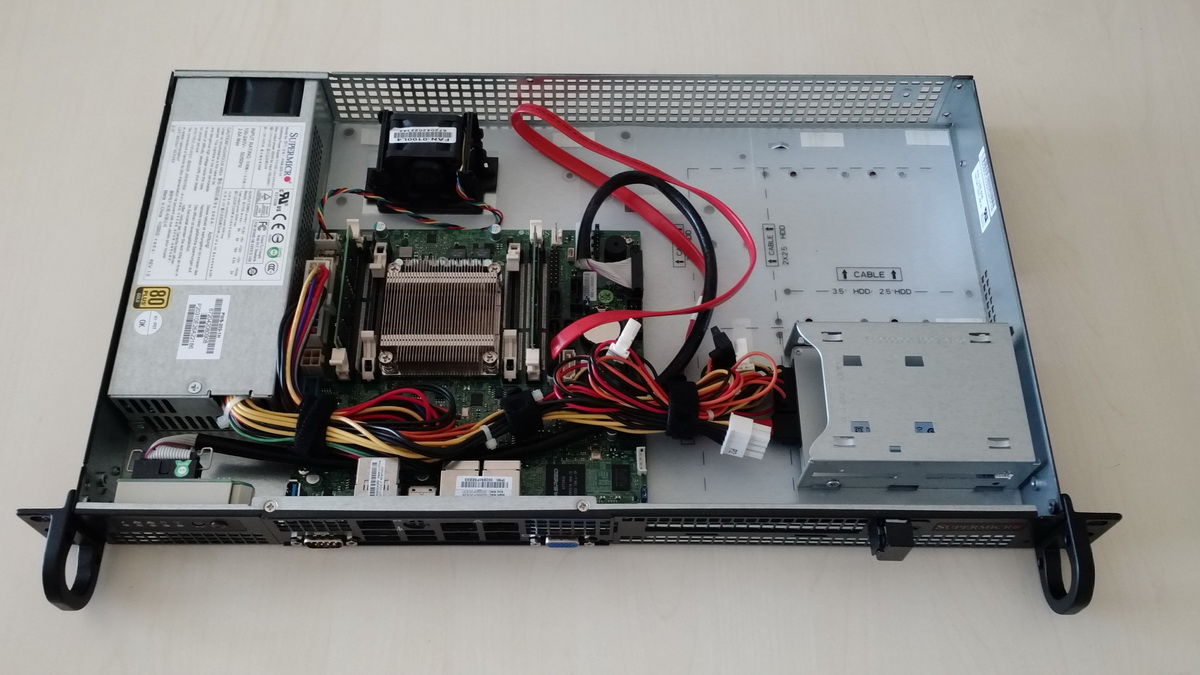

• Supermicro SC505-203B 19" 1U-Rackgehäuse
• Supermicro A1SAi-2550F Mainboard inkl. Quad Core Atom C2550
• Supermicro FAN-0100L4 / MCP-320-81302-0B
• 8GB ECC-RAM [Kingston KVR16LSE11/4]

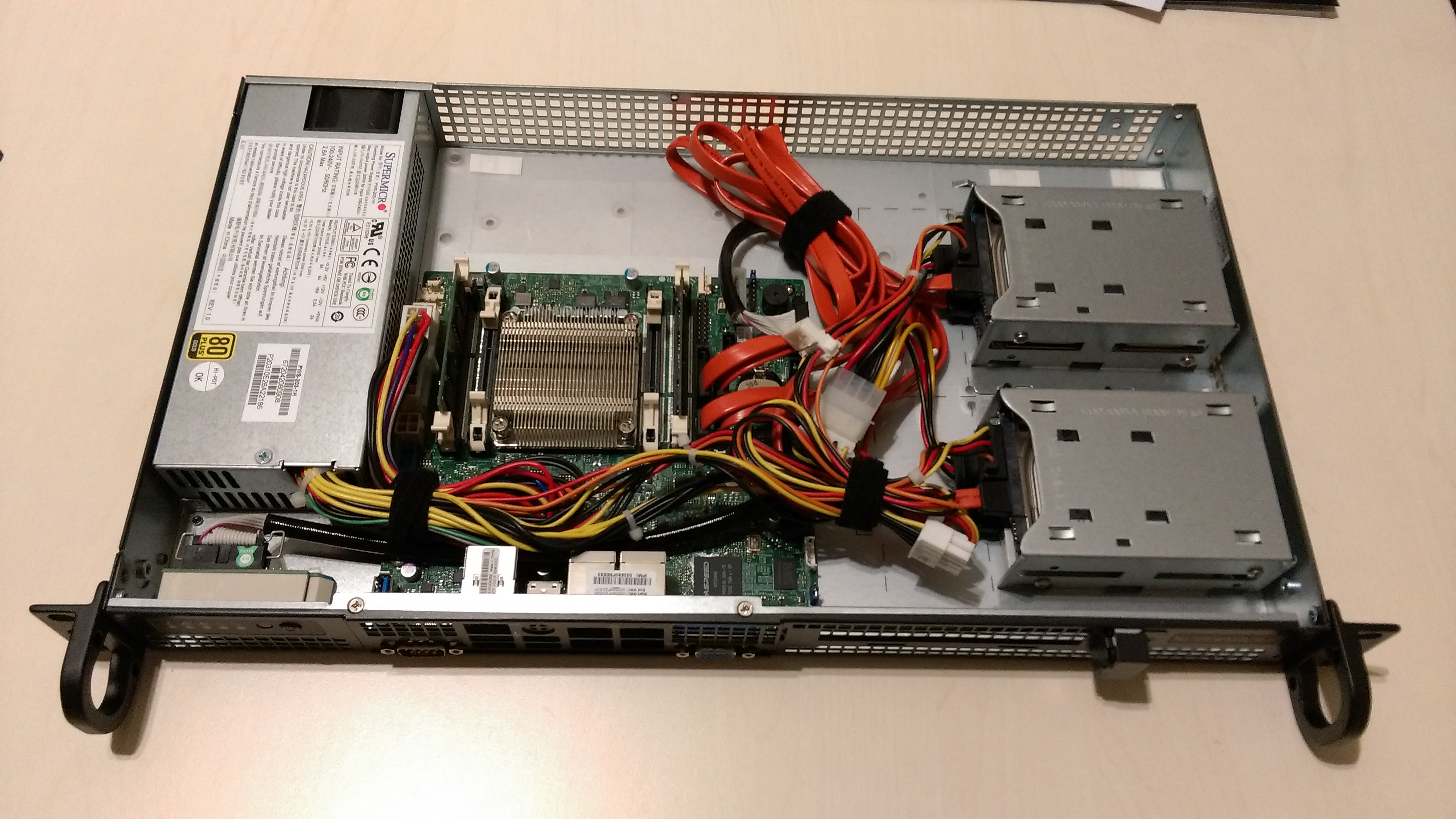

• 2x Supermicro MCP-220-00044-0N HDD-Käfig
• 128GB SSD Crucial M550 @SATA0 [datastore1]
• 500GB HDD Seagate ST500LT012 @SATA1 [datastore2]
• 500GB HDD Seagate ST9500420ASG @SATA2 [RDM-Mapping]
• 500GB HDD Seagate ST9500423AS @SATA3 [RDM-Mapping]

Betriebssystem Hypervisor

• pfSense 2.2.4 64-Bit
• VMWare ESXi 6

VM

• Ubuntu Server 12.04 LTS
  • Hardware
    • 2 CPU | 4GB RAM | 50GB @datastore1
  • Software

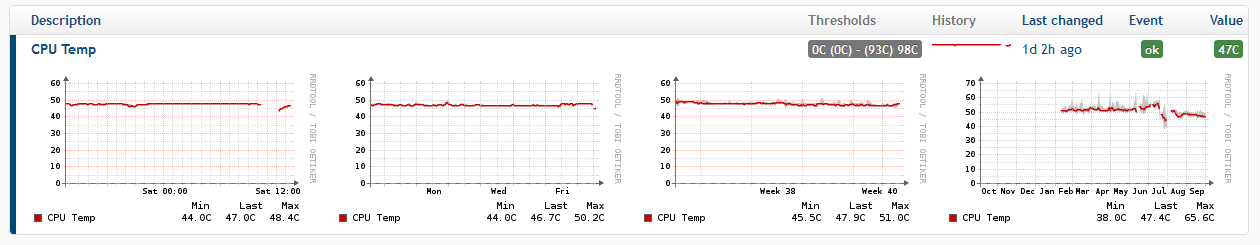

    • Observium | UniFi-Controller
  • Netzwerk
    • 1 NIC @LAN
• Synology DSM 5.1
  • Hardware
    • 2 CPU | 2GB RAM | 2x500GB HD @RAID1 [RDM@SATA2/3]
  • Software
    • Filestation | Audiostation | Photostation
  • Netzwerk
    • 1 NIC @DMZ

Energiebedarf [Idle]

• ~20 Watt

Weitere Details / Topologie

• My Digit@l-Home

Updates

• 01.08.2015 Umbau in pfSense-Firewall, Einbau 40mm Lüfter
